TMiO | Frequency Settings In The Web Interface

If you have multiple Trackman iOs you have to make sure they are all set to their own unique frequency, 1-25.

  1. Do do this, please open TPS
  2. Navigate to "Settings" -> "Advanced Settings"
  3. Select "About"
  4. Click the “Show Device Web Interface” link.
    • This will open up a browser page showing the status page of iO
  5. Select the "Login" tab.
    • Click "Login" again, then "Force", and then OK.
  6. Go to "Setup".
  7. Click "Frequency Groups".
    • Here is where you can select the 1-25.
    • Each iO must be on its own unique number. (TM4 frequencies do not overlap with iO)

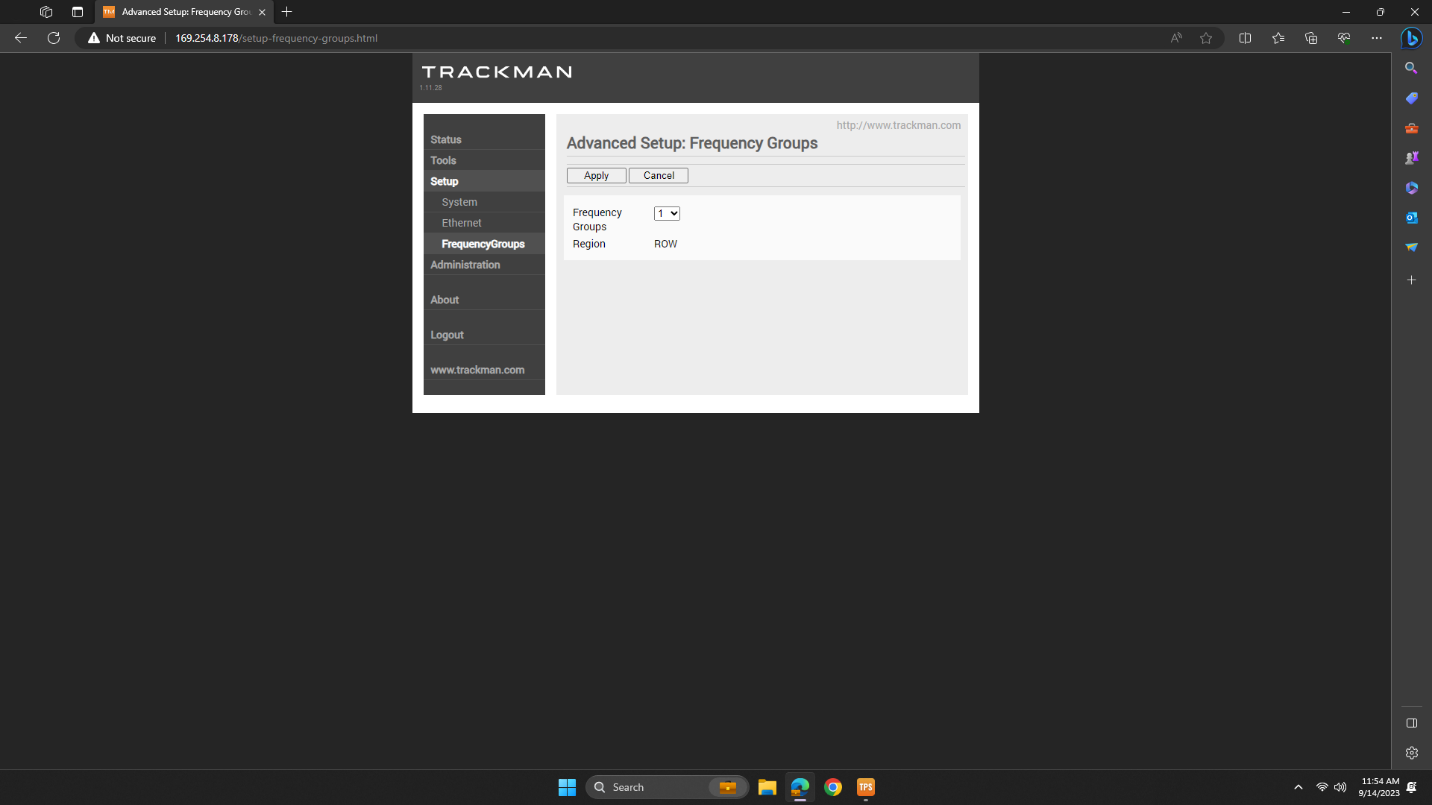

TMiO Frequencies.png
