TMiO | Height Dimensions (Mounting Specifications)

Overview of TMiO Height Dimensions

With the introduction of the three Trackman iO unit versions (Low, Mid, and High), you can find a setup that fits your bay’s specific height and space constraints.

There are three calibration height levels for Trackman iO and iO DUO, each defined by the distance from the turf surface to the ceiling:

LOW Calibration Height. Height range: 270 to 290 cm (8 feet 10 inches to 9 feet 6 inches). Supported by: Trackman iO only.
MID Calibration Height. Height range: 285 to 305 cm (9 feet 4 inches to 10 feet). Supported by: Trackman iO and Trackman iO DUO.
HIGH Calibration Height. Height range: 300 to 320 cm (9 feet 10 inches to 10 feet 6 inches). Supported by: Trackman iO and Trackman iO DUO.

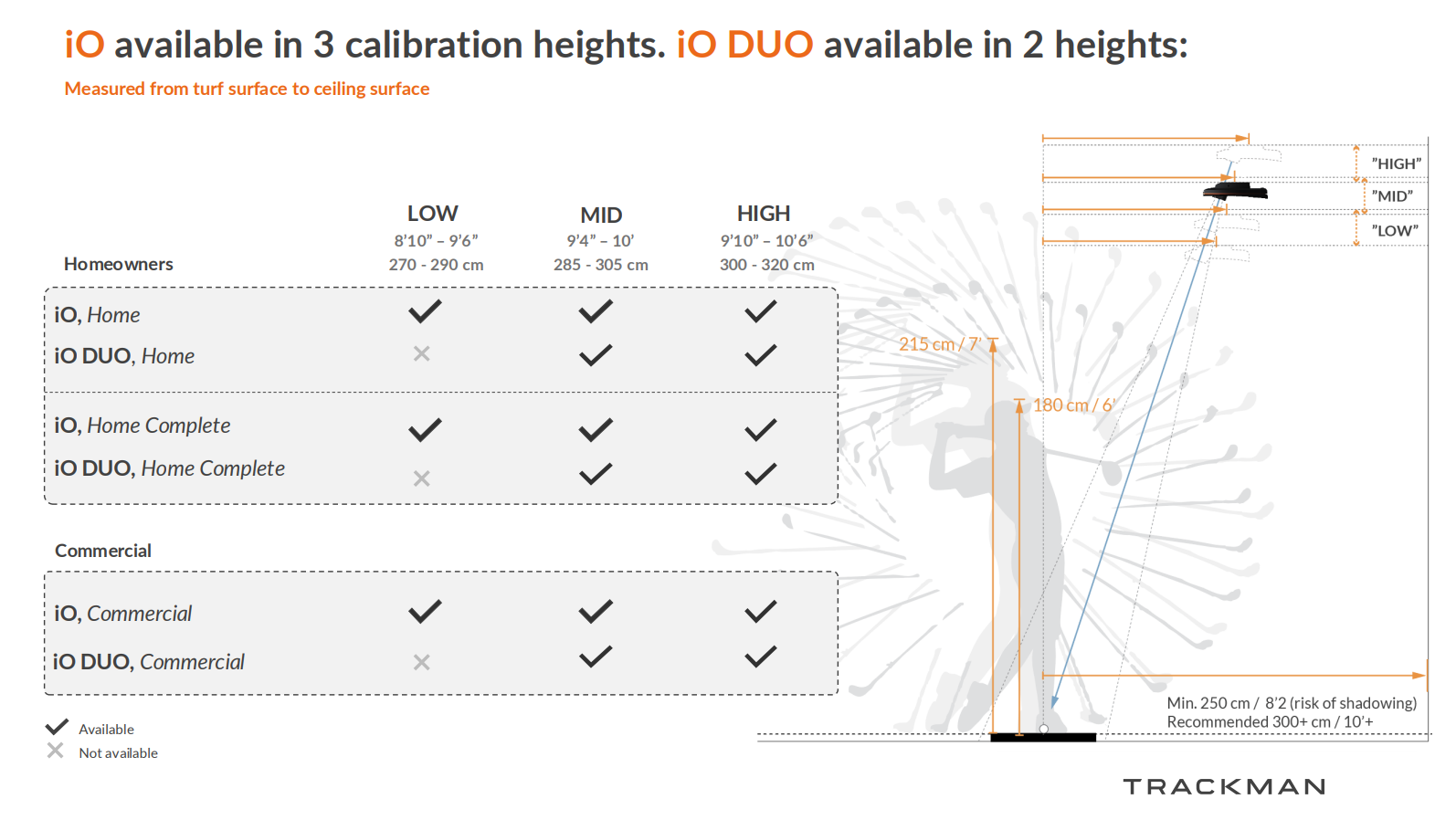

The diagram below outlines all key measurements, mounting options, and height requirements for each version for both TMiO and Duo, helping you determine the best fit for your environment.

Screenshot 2025-07-03 114021.png
