The battery indicator LED light on the Trackman 4 provides essential information about the device's battery status. Understanding these indicators helps users maintain their device effectively.

LED Light Statuses:

• Power On/Off:
  • Green Light: Device is on.
  • No Light: Device is off.
• Charging:
  • Blinking Green Light: Battery is charging.
  • Solid Green Light: Battery is fully charged.
• Low Battery:
  • Red Light: Battery is low; needs recharging.
• Error:
  • Blinking Red Light: Possible issue; check the manual.

Battery Status Indicators:

• Charged:
  • Full (100%): Light blinks 4times.
• Charging:
  • 75% Charged: Light blinks 3 times.
  • 50% Charged: Light blinks 2 times.
  • 25% Charged: Light blinks 1 time.
• Not Charging (Low):
  • Low Battery Level: One red LED light is lit.

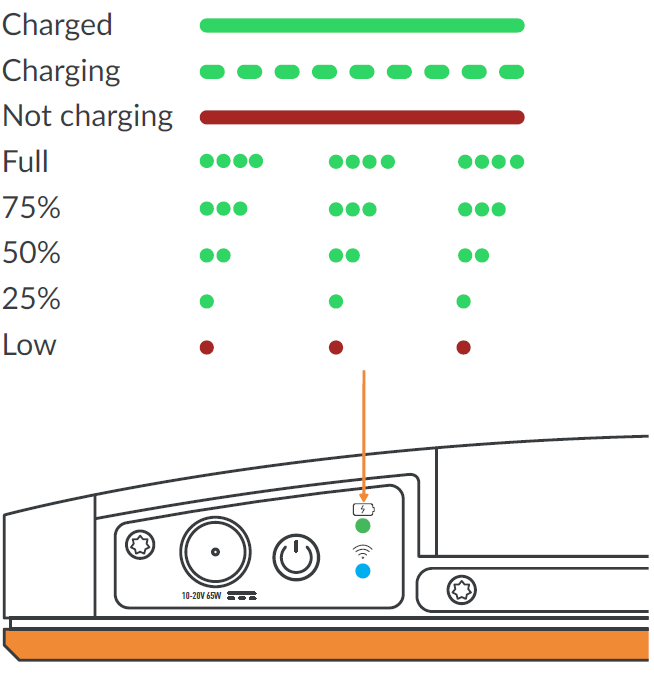

These indicators are also shown in the image below and can help you quickly understand the battery status of your Trackman 4.
