Mounting Your Trackman IO Unit
You might come across situations where you need to mount your Trackman IO unit back into place after troubleshooting or receiving it back from repair.
This article includes a guide on how to mount your Trackman iO back into place. For this, there are two mounting types, which will both be elaborated below.
If this is your first time installing your unit, please see TMiO | Overview of Installation Instructions & Videos
Mounting Type A: Direct Ceiling Mount
This mounting type is suitable for distances between the hitting surface and ceiling of 285 cm (9’4”) to 305 cm (10’0”).
To perform this, please:

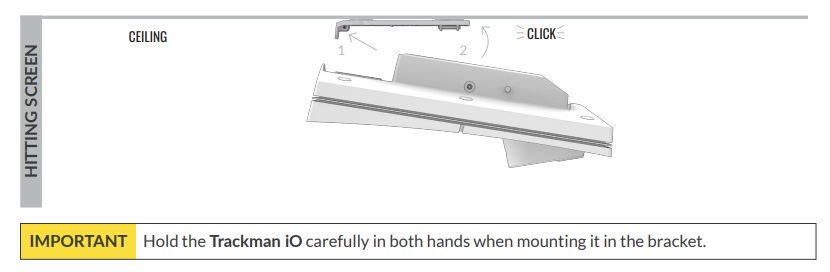

- Positioning: Use both hands, lift your Trackman IO at an angle toward the ceiling bracket.
- Mounting: Push the unit lightly into place until you hear a click. Do not let go of the unit until you are sure the lock has engaged.
Mounting Type B: VESA Mount with Adjustable Drop Pole/Bracket
This mounting type is used when the distance between the hitting surface and ceiling exceeds 305 cm (10’0”).
To perform this, please:
-

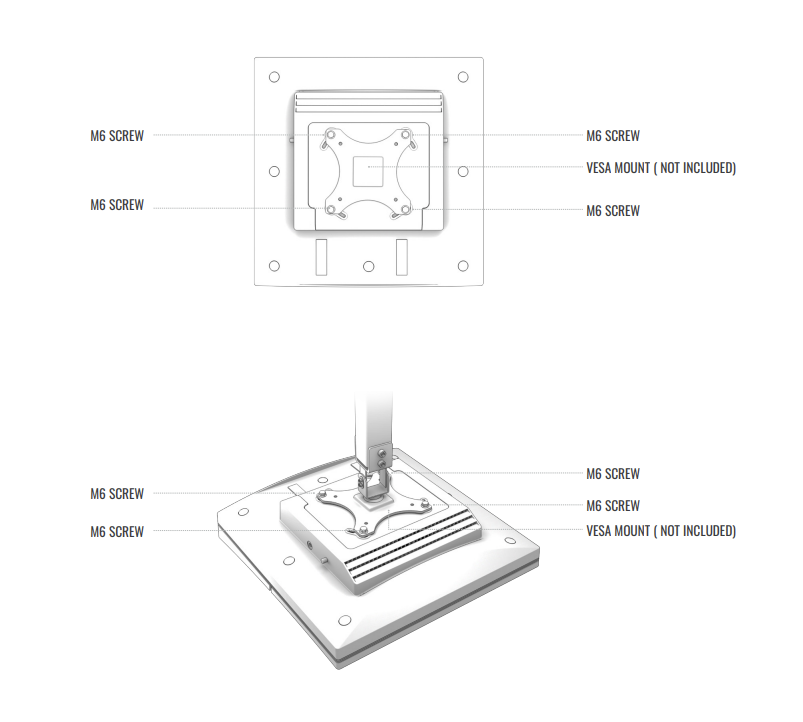

Attachment: Attach your Trackman iO to the VESA mount bracket using the supplied 4 pcs. M6 screws and tighten them.
- Important: Have a person assist you in fastening the 4 pcs. M6 screws while holding the Trackman IO in both hands.
- Alignment: Ensure the VESA mount is level and your Trackman IO is aligned with the hitting screen.
Connecting the Cables
-
Ethernet Cable:
- If your Trackman iO is mounted directly to the ceiling, use caution as there will be limited space when plugging in the Ethernet cable.
-
AC/DC Power Adapter:
- Connect the mains power cable to the AC/DC adapter.
- Place the adapter on the shelf of the Trackman iO.
- Plug the DC connector into the DC power plug on the side of the Trackman iO.
- Make sure the adapter is fastened to your Trackman iO using the Velcro strips.
-
Power On:
- Connect the power plug from the AC/DC adapter into an appropriate outlet. Your Trackman iO will turn on.
You are now set to use your Trackman iO!
