Setting up a Trackman iO bay requires careful attention to specific dimensions and distances to ensure optimal performance and safety. This article provides clear instructions on room height, tee to screen distance, hitting surface dimensions, and considerations for rooms with recessed ceilings.

Guidelines To Set Up A Trackman iO Bay

1. Room Height: The minimum room height should be 9 feet 4 inches (2.85 meters). Ideally, the mounting height is 9 feet 8 inches (2.95 meters) above the hitting surface.
2. Tee to Screen Distance: Ensure a minimum distance of 8 feet 2 inches (2.5 meters) from the tee to the screen. For better safety and comfort, 10 feet (3.0 meters) is recommended.

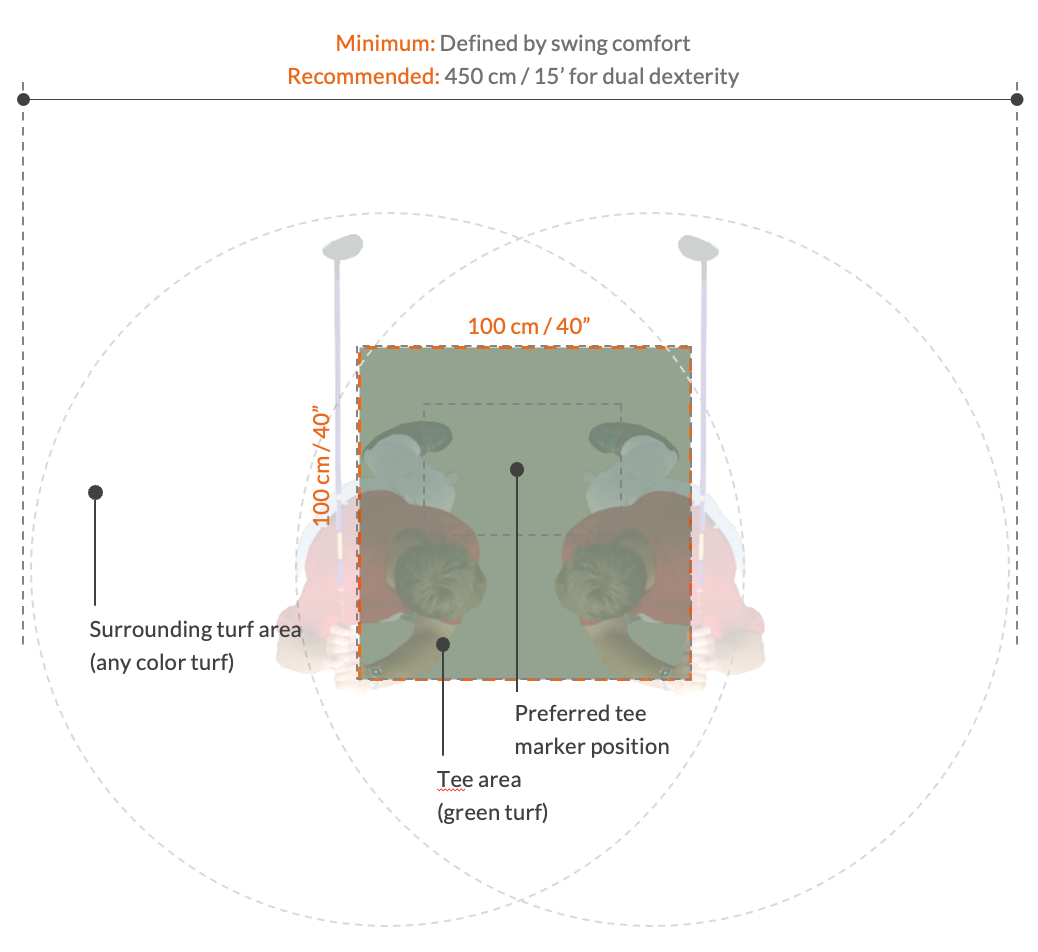

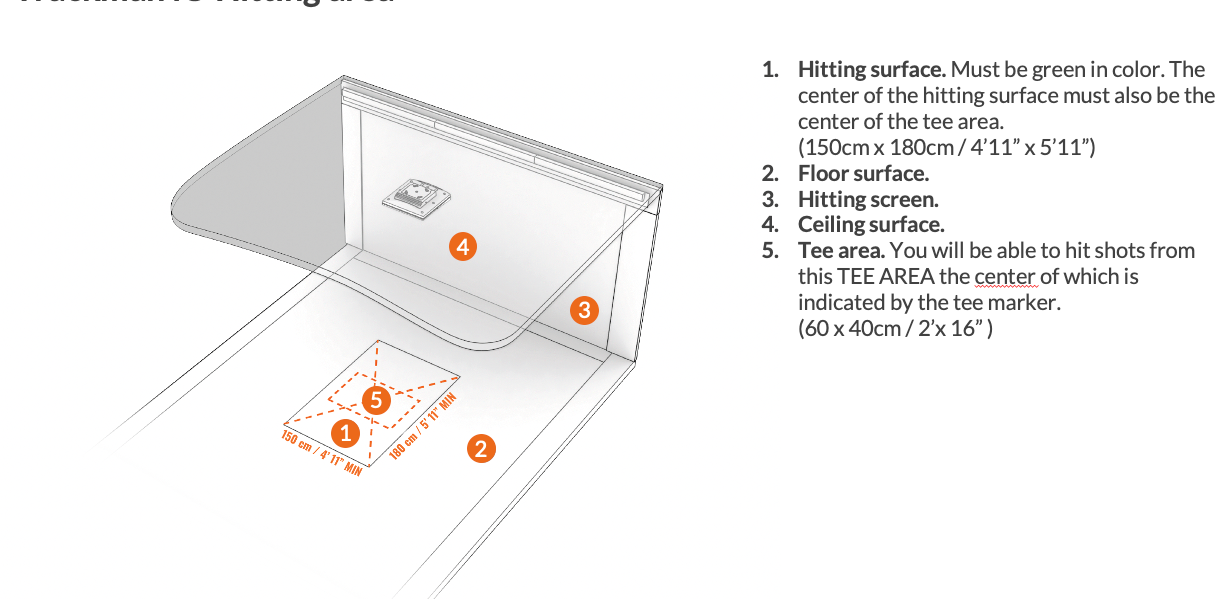

3. Hitting Surface Dimensions: The area around the tee should be at least 6 feet deep by 5 feet wide (1.8 x 1.5 meters). This ensures accurate ball tracking.

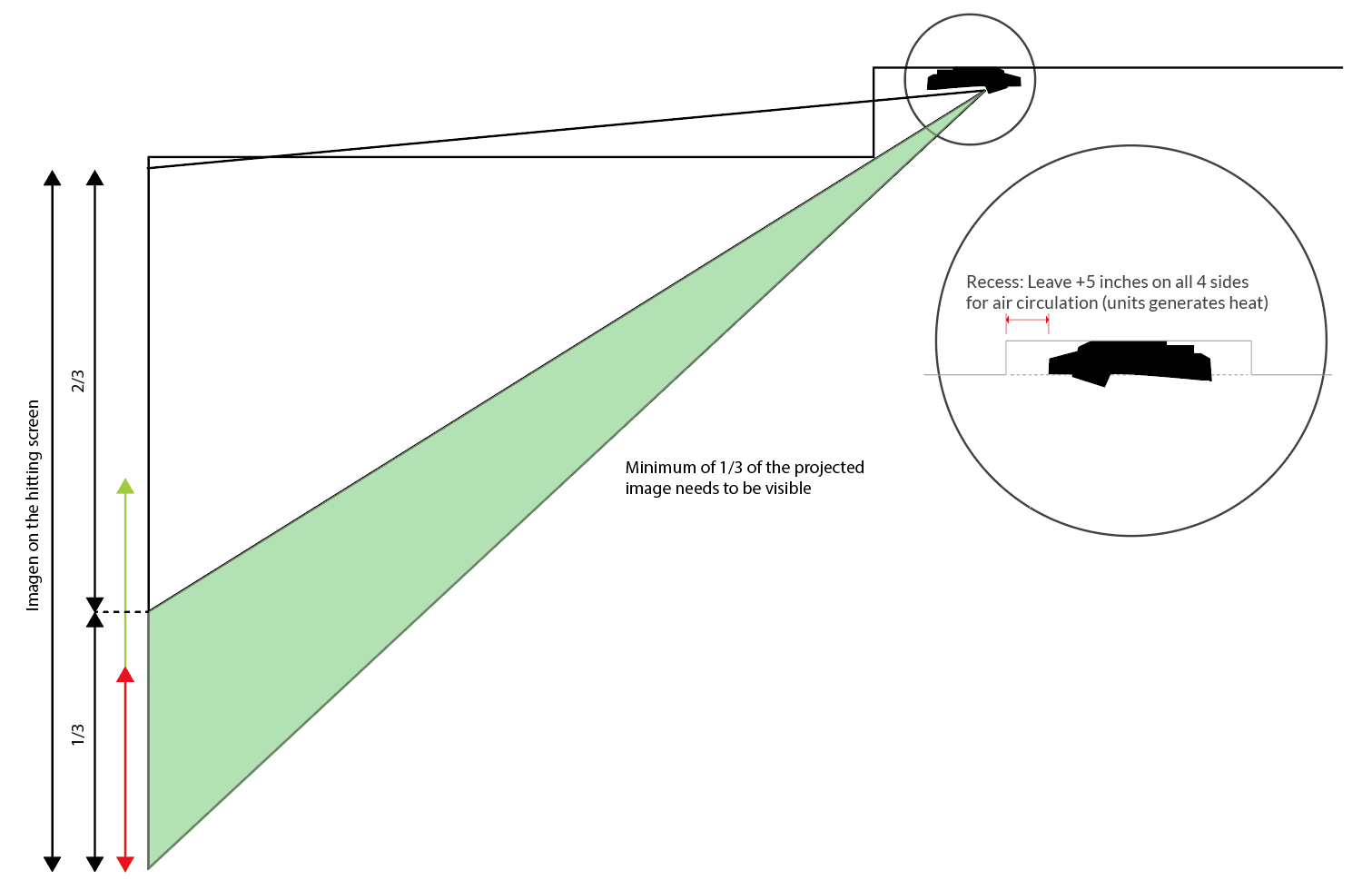

4. Ceiling Recess: If the room has a recessed ceiling, make sure that at least one-third of the hitting screen is visible to the front-facing camera of the Trackman iO.
