This article explains how to configure multiple monitors in Windows for use with Trackman Performance Studio (TPS).

A multi-display setup allows you to:

• Show simulator gameplay or ball flight visuals on a primary display/projector
• Keep TPS controls, data tiles, and session management on a secondary screen
• Improve workflow efficiency during coaching sessions, fittings, or practice

Ensure your hardware is correctly connected:

• Connect each monitor using HDMI or DisplayPort
• Power on all displays
• Confirm Windows detects both monitors

If a monitor is not detected, try to go to Settings → System → Display → Detect.

Configure Displays in Windows

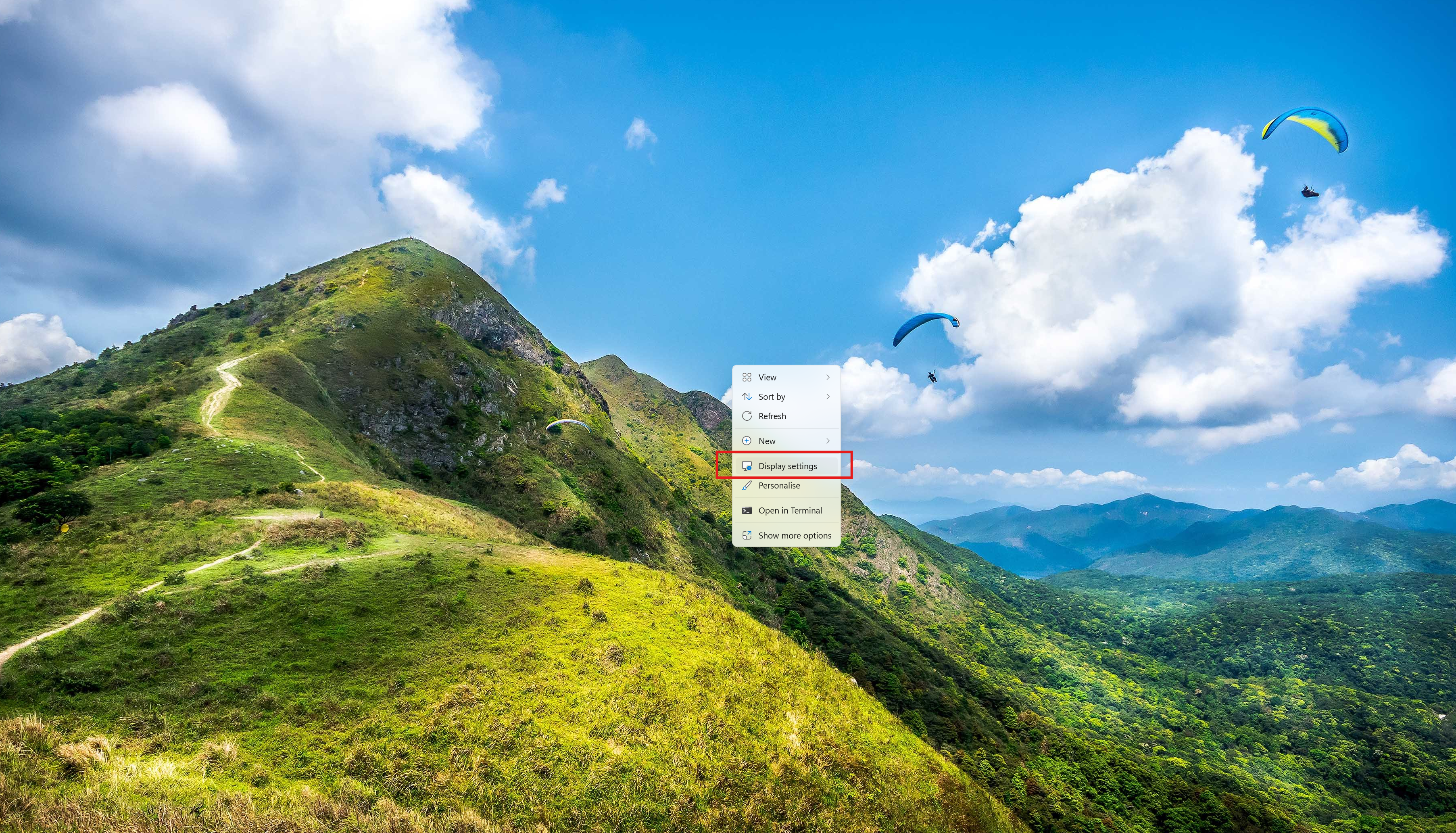

1. Open Display Settings
   • Right-click on your Windows desktop

   • Select Display settings




2. Identify Connected Displays
   • Click Identify
   • A number (e.g., 1, 2) will appear on each screen
   • This ensures your digital layout matches your physical setup.

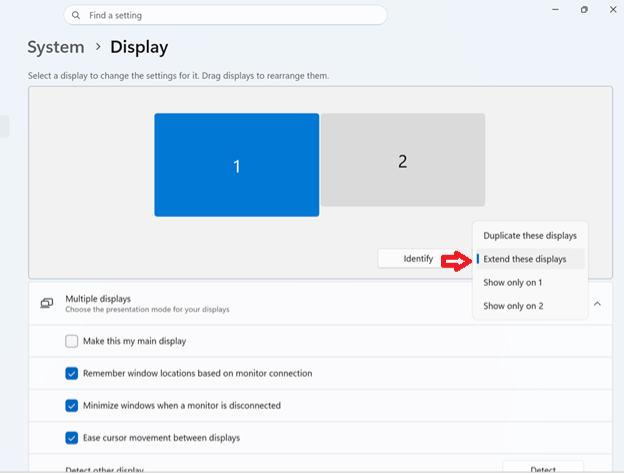

3. Select Display Mode
   • Scroll to Multiple displays and choose your configuration:
     • Extend these displays. This creates one large workspace across screens
     • Duplicate these displays: Mirrors the same content on both displays.
   • Extend mode allows each monitor to show different content, which is essential for multi-screen workflows.
   • Use Extend mode to display simulator visuals separately from TPS controls.



4. Arrange Monitor Layout
   • Drag the monitor boxes (1, 2, etc.)
   • Align them to match their physical position

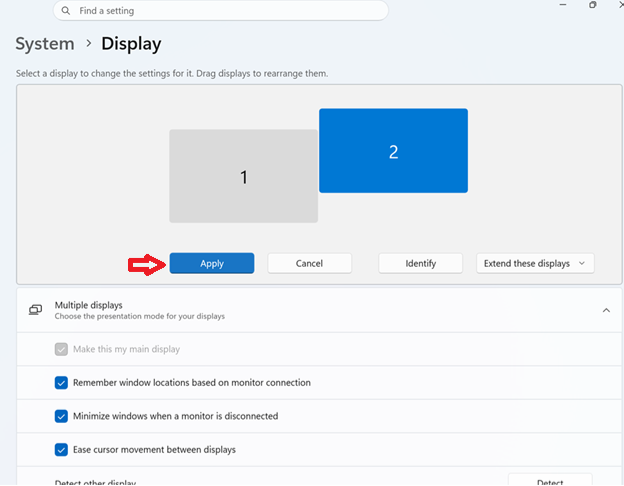

5. Apply Configuration
   • Click Apply
   • Confirm changes if prompted
