TM4 | Collect TMFs

  • Updated

The following are the files we need to review when a TM4 unit is performing or behaving abnormally.

Setup the radar and connect to the computer via Wi-Fi.

  1. TPS Support Files & Log files
    • Open TPS 
    • Go to "Settings"
    • Make sure that “Save TMD files” is enabled (important!)

      TMD 1.png

    • Start a session
    • Hit 5 shots with driver
    • Hit 5 shots with 6 iron
    • Hit 5 shots with 56 degree (It doesn’t matter what the result is)

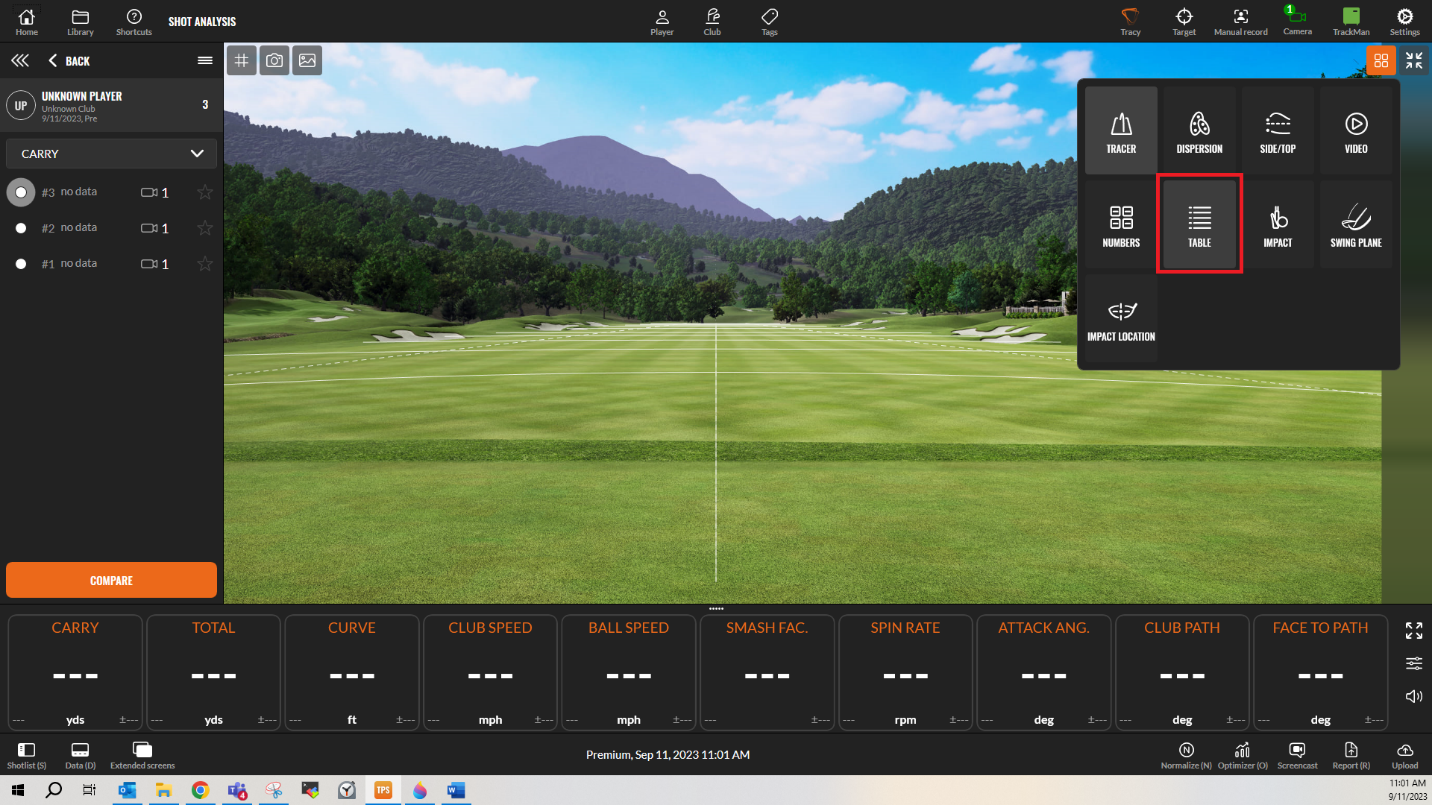

    • Go to "Analyze"

      TMD 3.png

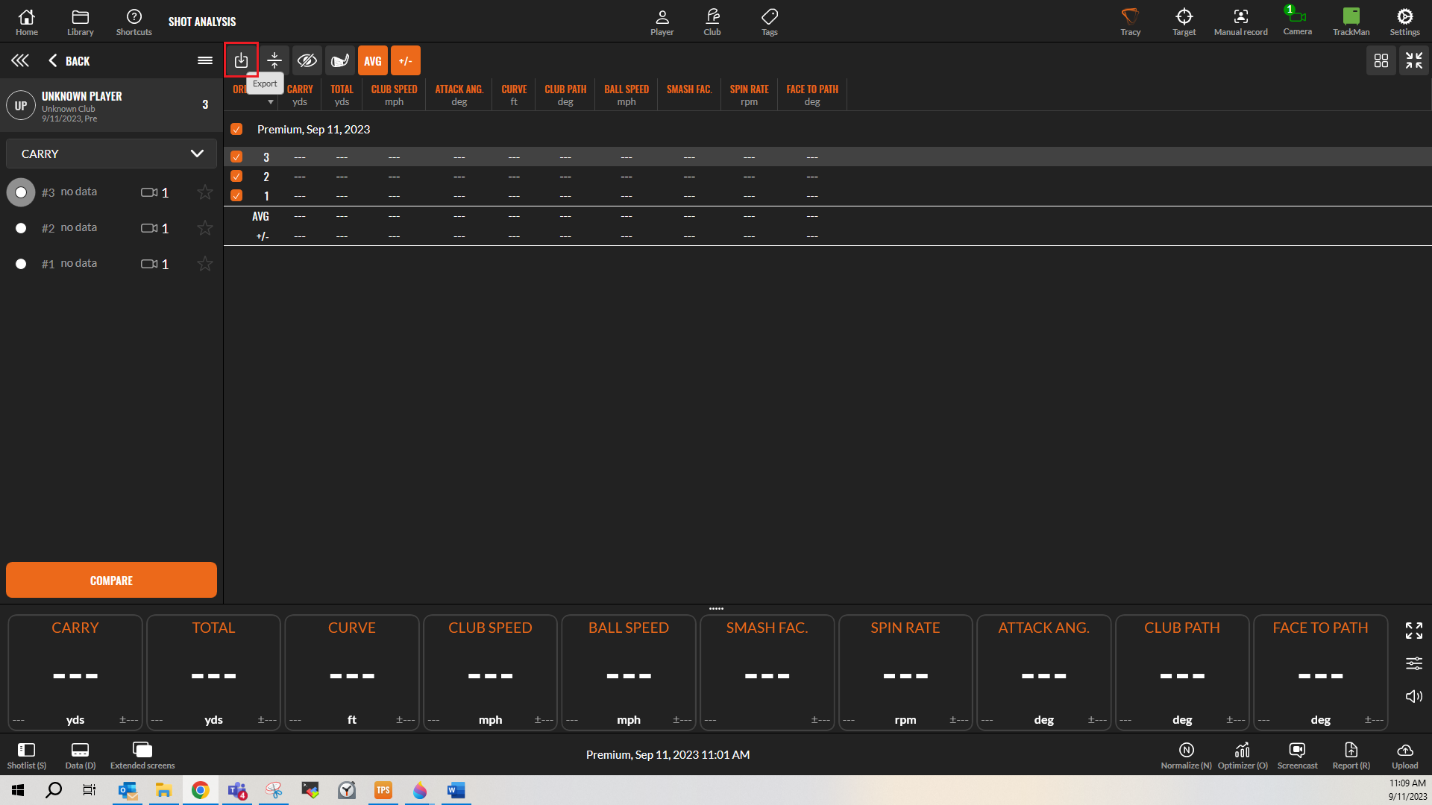

    • Click "Export"

      TMD 4.png

    • Export as Trackman Support File

      TMD 2.png

    • Save the file to Desktop
