Explanation of the Error

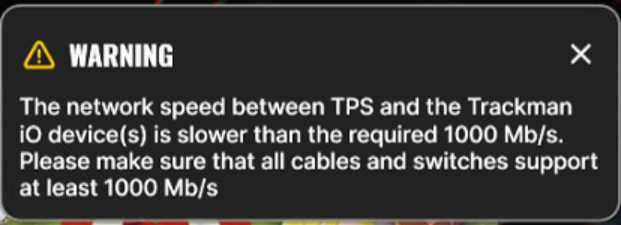

If you experience an error in TPS mentioning that the network speed between TPS and TMiO is slower than the required 1000 Mb/s, please follow the below steps. Please confirm you are using a CAT 6 cable for all connections.
Steps to Resolve the Error

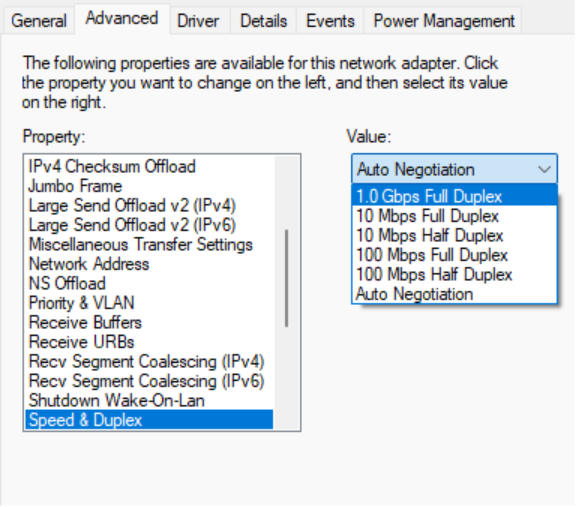

- Make sure to have Speed & Duplex set to 1.0 Gbps Full duplex. For guidance on this, please refer to this article: Settings | PC Ethernet Settings 🎦

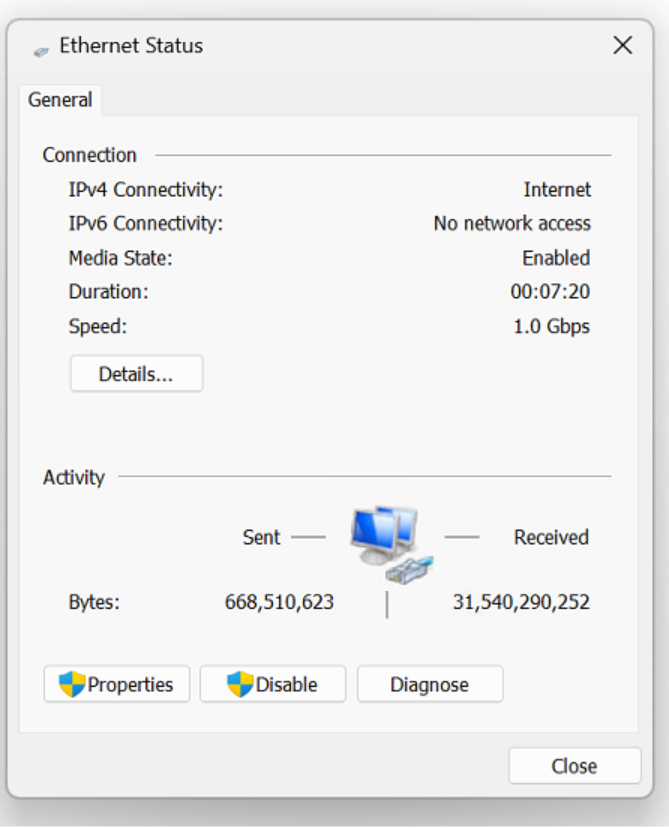

- Check if the speed is 1.0 Gbps by double clicking on the “unidentified network” connection.
- If it is not in 1 Gbps, you can restart the network connection by disabling and enable it back.
- Make sure Trackman iO units connected to the motherboard ethernet port to determine if this is an issue with a potential switch, adapter or cable.

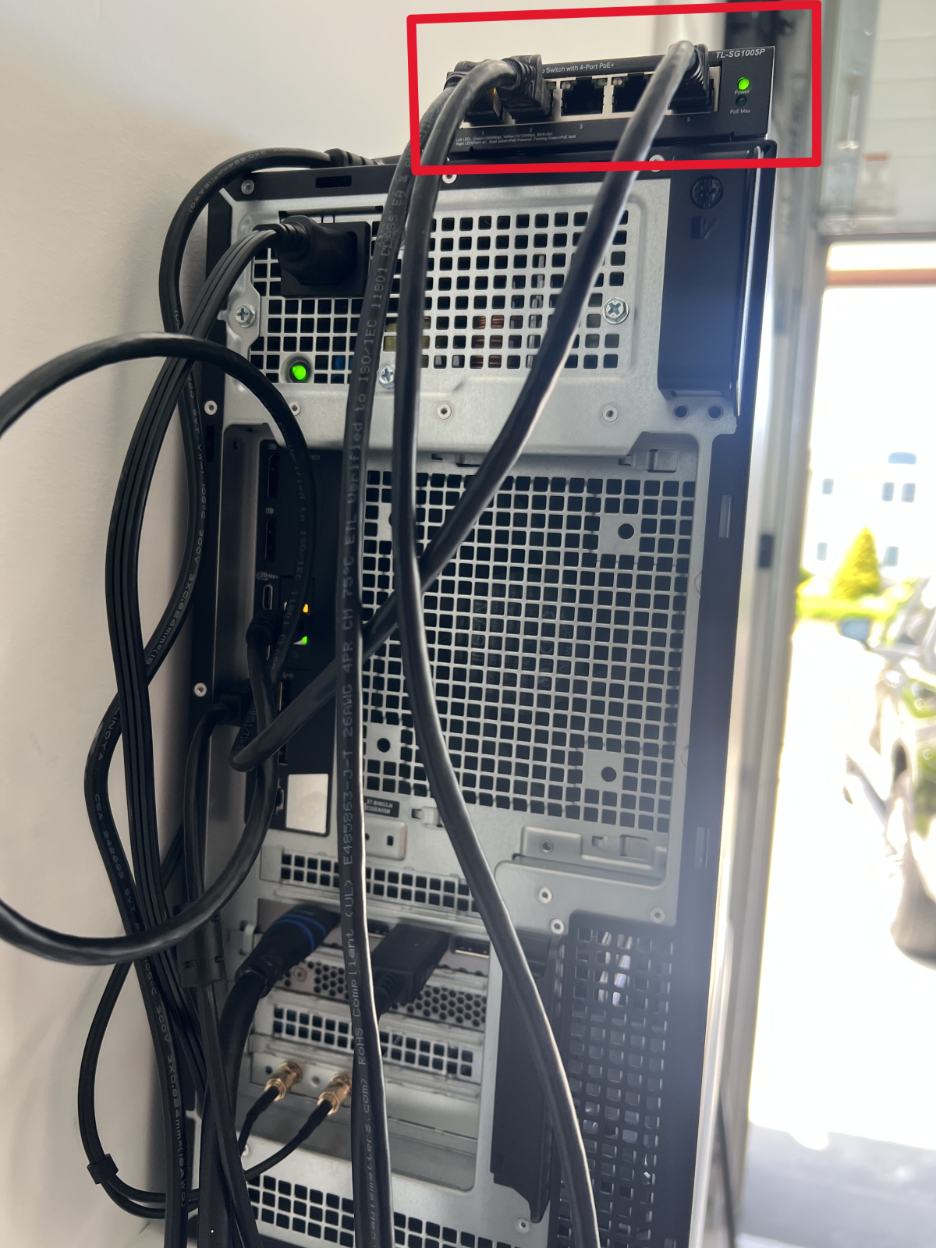

- If connected to a network switch, make sure that we have the proper transfer speed (1.0 Gbps). This one should be located near your computer:
- To further troubleshoot if this is a port, cable or switch issue, please test different ports on the switch.
- If connected to a network switch, make sure that we have the proper transfer speed (1.0 Gbps). This one should be located near your computer:
