In Trackman, the two calibration bars in the top of the screen are used to indicate calibration status. These bars help you verify that the system is correctly calibrated to measure the ball and club data accurately.
Calibration Bars

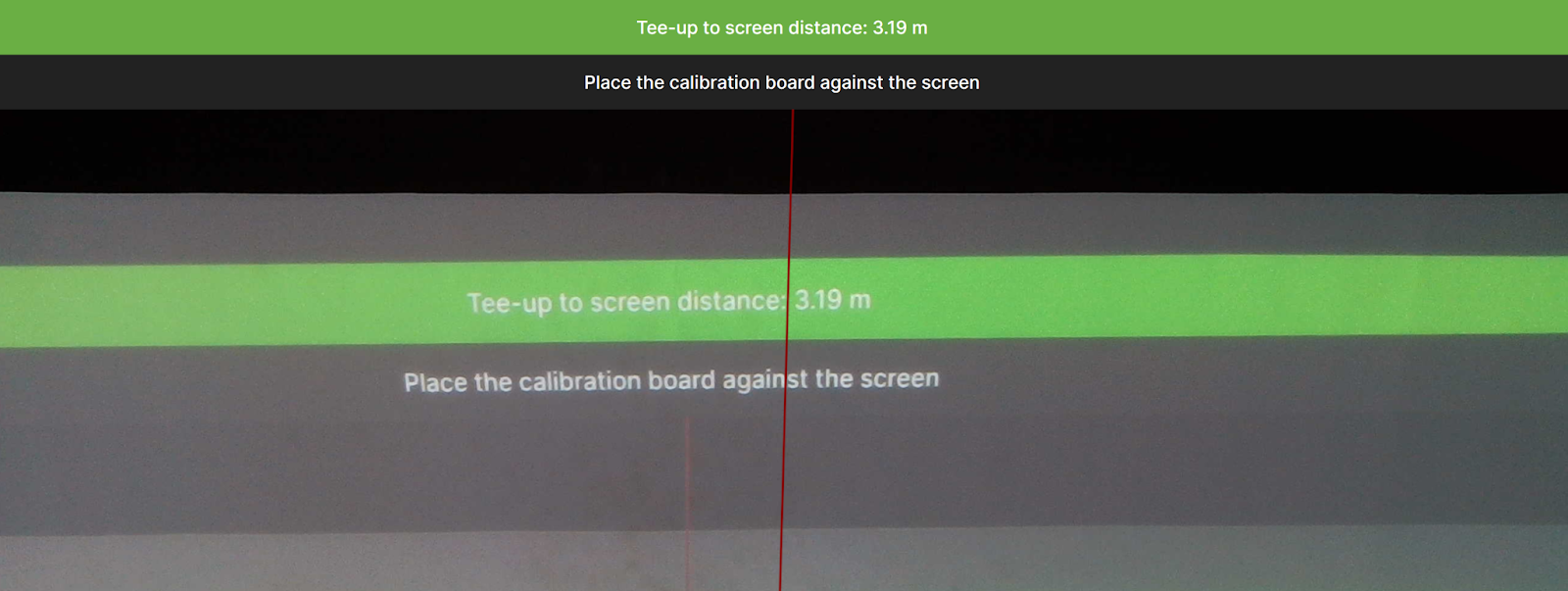

- The top bar displays the last distance reading from the calibration board
- If this bar is green, the system has successfully read the distance and calibration is complete.
- The bottom bar reacts in real time to the presence of the calibration board.
- It will turn green when the board is correctly placed and detected against the screen.
Color Indicators
- Green Bars
- If both bars turn green, the calibration has successfully been completed.
- Top Bar Remains Black
- If the top bar is black, calibration is needed. Adjustments may be required.
- Top Green Bar and Black Bottom Green Bar
- If top bar is green and bottom bar is black, no further action is needed. Simply press continue.
If case you need to perform a calibration, you can do this through TPS. Do to this, please follow the steps provided in TMiO | How to Manually Calibrate Trackman iO 🎦 – Golf
